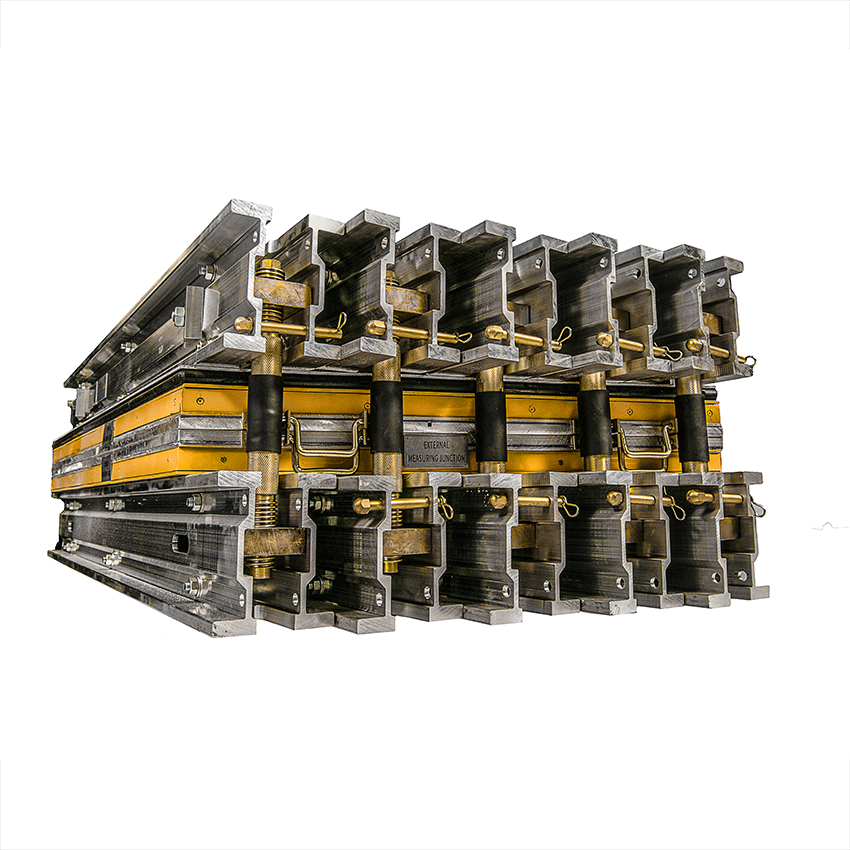

SVP Series Belt Vulcanizing Press
SVP Series Belt Vulcanizing Press (SVP-1000x830mm)
PORDUCT DETAILS:
1) It’s equipped with THEMAX automatic control box. In case automatic control failure, you can switch to the manual control mode.
2) Classic high tensile aluminum alloy. When pressure reaches to 2Mpa, it only creates invisible deformation.
3) Durable steel clamping device, special structural design, safe and reliable.
4) Electric water pump, save time and flexible to control vulcanizing pressure. It makes the same vulcanizer suit for various conveyor belting project ( air pressure system for optional).
5) Pressure device adopts rubber pressure bag, saving 80% weight than the traditional platen. Flexible rubber bladder provided uniform pressure and high effeciency. It passes the test of setting pressure 2.5 MPa and become the most popular pressure system.
6) Almex type whole heating platen made by hard aluminum alloy. Thickness is only 25 mm, to reduce weight and save energy. It only needs around 20 minutes to rise from room temperature to 145 ° C.
7) Build-in water cooling system, from 145 ℃ to 80 ℃ need only 15-20 minutes.
PARAMETER & APPLICATION
MODEL BELT WIDTH
(mm)
POWER
(kw)
DIMENSION
(LxWxH, mm)
WEIGHT
(kg)
SVP-1000*830
1000
14.1
1750*930*1000
650
APPLICATION RANGE:
It's of a vulcanizing equipment and tool for repairing & splicing of rubber conveyor belt.
The belt vulcanizer is dependable, lightweight and portable machine, which is widely used in the field of metallurgy, mining, power plants, ports, building materials, cement, coal mine, chemical industry, etc.
It suits for various conveyor belt, such as EP, Rubber, Nylon, Canvas and Steel cord belt, etc.
WARRANTY & AFTER-SALES
WARRANTY: 12 months.
Within warranty period, if any failure or part damage caused by the quality problems, we will deliver the substitute parts to the customer for free（but the freight is at buyer’s account). After 12 months of warranty, we will provide online technical service and parts supply, will only charge as per our cost price.
SHIPPING INFO
NOTES：
- Required min. quantity: 1 set.
- Payment terms: 50% down payment via T/T; 50% balance before delivery via T/T.
- Delivery time: 25-30 working days after receiving 50% down payment via T/T.
- Recommended transportation method: LCL.
